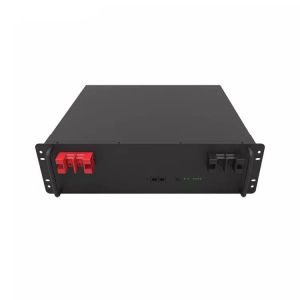

48v Solar Battery Lithium Ion 8kw 160Ah Home Battery Backup

Name: 48v Solar Battery Lithium Ion 8kw 160Ah Home Battery Backup
Brand: Sunica
Price: 400 USD

Brand Name : Sunica

Model Number : 01

Certification : ce

Place of Origin : Guangdong, China

MOQ : 1

Price : USD 400- 10000 / pieces

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 100000 packs per year

Delivery Time : 7-20 working days

Packaging Details : Carton+Wooden Box+Customized Packaging

Weight: : 70KG

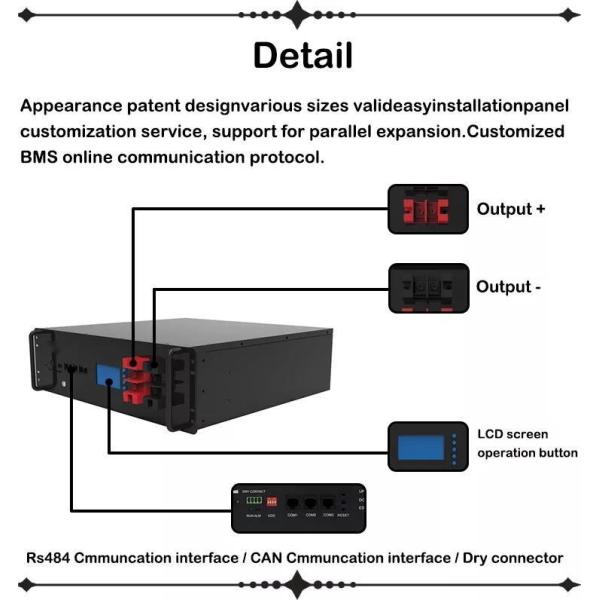

Communication : RS485/RS232/CAN

Cycle life : 6000 Cycles

Size : 442*520*221 mm

Battery Type : Lithium Ion, LiFePO4

Contact Now

48V 160Ah Energy Storage Lithium ion Battery 8kw Rack Backup Battery

Model	TP48160(5U)
Nominal voltage(V)	48
Nominal capacity(Ah)	160
Nominal energy (Wh)	7680
Maximum charging voltage(V)	54.75
Max. charging current(A)	100
Charging method	CC/CV
Max Continuous Discharge Current(A)	100
Maximum peak discharge current @10sec(A)	110
Max. load power(W)	4500
Discharge cut-off voltage(V)	37.5
Charging temperature(℃)	0~+50
Discharge temperature(℃)	-20~+60
Operating humidity:	<95%R.H
Operating humidityCycle times(25℃,0.5C,80%DOD)	>2000
Battery combination mode	15S3P
Terminal specification	KF57-4P
Protection class	IP54
Dimension(mm)	442520221 mm
Reference weight(kg)	70
Communication mode	232/485/CAN

This Lithium-Ion Battery has a long lifespan of 6 000 cycles at 80% depth of discharge at 25°C. In addition, the batteries can support up to 15 batteries in parallel for expansion. The batteries are set to sleep mode (off) during transportation and storage to reduce loss of capacity. has the following remarkable characteristics:

>> Long lifespan of 6000 cycles at 80% DoD at 25’C.

>> Excellent charge and discharge capacity.

>> The Batteries can support up to 15 batteries in parallel for expansion.

>> The Batteries are set to sleep mode (off) during transportation and storage to reduce loss of capacity.

>> Also, disconnect active power from output terminals for enhanced safety.

>> Lightweight and compact.

>> Environmentally friendly.
>> sunica provides Lithium-ion batteries with proven Lithium Iron Phosphate (LifePO4) chemical composition.
>> This product has a 5-year warranty with a 10-year warranty option


FAQ:
 Q. What about the lead time?
 A. Sampleneeds 3 days, mass production time needs 5-7 weeks, it depends on order quantity.
 Q. Do you have any MOQ limit?
 A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for samplechecking is available.
 Q. How do you ship the goods and how long does it take to arrive?
 A. It usually takes 5-7 days to arrive.Airline and sea shipping is also optional.
 Q.Which certificates do you have?
 A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.
 Q.How about warranty?
 A:5 year warranty.
